CSS Captions under thumbnails in the Photography template

Discussion in 'Web Development' started by chasm, Feb 13, 2009.

  1. chasm

    chasm New Member

    I've modified the template a bit and streamlined it, but I can't figure out how to make captions appear under the photo gallery thumbnails. Any help would be appreciated.

    I'm using the Photo Template

    Tks!

    chasm, Feb 13, 2009
    #1
  2. ishkey

    ishkey Moderator, Logos, Sports Crests Staff Member Verified Member

    If you made mods to a template and do not post the code, then we really can not help you. Xray vision has ben disabled on this forum.:D

    ishkey, Feb 13, 2009
    #2
  3. chasm

    chasm New Member

    Duly noted re: posting code

    The thumbnails are coded as an unordered list - I tried adding a second UL beneath the thumbnail UL but I couldn't wrangle the spacing so that everything lined up properly.

    here's the related bits of the css:

    body {
    padding: 80px 0px 0px;
    background: url('images/background_top.gif') #c4b8a1 repeat-x;
    color: #695d47;
    font-family: verdana, arial, sans-serif;
    font-size: 12px;
    text-align: center;
    }
    a {
    color: #695d47;
    background-color: inherit;
    text-decoration: underline;
    }

    ul {
    list-style-type: none;
    }
    li {
    list-style-type: none;
    }
    p {
    margin: 0px 0px 15px;
    text-align: justify;
    line-height: 15px;
    }
    .clearthis {
    margin : 0px;
    height : 1px;
    clear : both;
    float : none;
    font-size : 1px;
    line-height : 0px;
    overflow : hidden;
    visibility: hidden;
    }

    /* My Portfolio */

    #portfolio .content_header h1 {
    height: 28px;
    background: url('images/portfolio_header.jpg') no-repeat;
    }
    #portfolio {
    padding-bottom: 12px;
    background: url('images/gallery_title.gif') no-repeat 29px 80px;
    }
    #gallery {
    padding: 40px 0px 25px 59px;
    }
    #gallery ul {
    width: 700px;
    }
    #gallery li {
    margin-right: 30px;
    margin-bottom: 25px;
    padding: 4px 4px 2px;
    background-color: #c4b8a1;
    color: inherit;
    float: left;
    }
    =====

    index.html (fiddly bits removed)
    <div id="portfolio">

    <div class=    "content_header">
    <h1><span>My Portfolio</span></h1>
    </div>

    <!-- Start of Gallery -->

    <div id=    "gallery">

    <ul>
    <li>    <ahref="http://www.freewebsitetemplates.com/"><imgsrc="images/gallery_thumbnail_1.gif"width="84"height="76"alt="Thumbnail 1 Caption" /></a></li>
    <li>    <ahref="http://www.freewebsitetemplates.com/"><imgsrc="images/gallery_thumbnail_2.gif"width="93"height="76"alt="Thumbnail 2 Caption" /></a></li>
    <li>    <ahref="http://www.freewebsitetemplates.com/"><imgsrc="images/gallery_thumbnail_3.gif"width="59"height="77"alt="Thumbnail 3 Caption" /></a></li>
    <li>    <ahref="http://www.freewebsitetemplates.com/"><imgsrc="images/gallery_thumbnail_4.gif"width="137"height="77"alt="Thumbnail 4 Caption" /></a></li>
    <li>    <ahref="http://www.freewebsitetemplates.com/"><imgsrc="images/gallery_thumbnail_5.gif"width="119"height="78"alt="Thumbnail 5 Caption" /></a></li>
    </ul>

    </div>

    <!-- End of Gallery -->

    chasm, Feb 13, 2009
    #3
  4. ishkey

    ishkey Moderator, Logos, Sports Crests Staff Member Verified Member

    ishkey, Feb 13, 2009
    #4
  5. chasm

    chasm New Member

    Yep. That template.

    chasm, Feb 13, 2009
    #5
  6. ishkey

    ishkey Moderator, Logos, Sports Crests Staff Member Verified Member

    quick fix - put back css file to orig.
    try this code in html file - though it might give coding errors if someone is picky about proper code, but sill it works.
    Code:
    [I][COLOR=#ff0000][COLOR=#ff0000]<!-- Start of Gallery -->[/COLOR][/COLOR][/I]

[B]<div[/B] id=[B]"gallery">[/B]
[B]<dl>[/B]
[B]<ul>[/B]
[B]<li><[/B][B][COLOR=#800000][COLOR=#800000]a[/COLOR][/COLOR][/B] href=[B]"#"><[/B][B][COLOR=#800000][COLOR=#800000]img[/COLOR][/COLOR][/B] src=[B]"images/gallery_thumbnail_1.gif"[/B] width=[B]"84"[/B] height=[B]"76"[/B] alt=[B]"Thumbnail 1 Caption"[/B] [B]/></[/B][B][COLOR=#800000][COLOR=#800000]a[/COLOR][/COLOR]></li><dd>[/B]Hot Lips[B]</dd>[/B]
[B]<li><[/B][B][COLOR=#800000][COLOR=#800000]a[/COLOR][/COLOR][/B] href=[B]"#"><[/B][B][COLOR=#800000][COLOR=#800000]img[/COLOR][/COLOR][/B] src=[B]"images/gallery_thumbnail_2.gif"[/B] width=[B]"93"[/B] height=[B]"76"[/B] alt=[B]"Thumbnail 2 Caption"[/B] [B]/></[/B][B][COLOR=#800000][COLOR=#800000]a[/COLOR][/COLOR]></li><dd>[/B]Wasp Love[B]</dd>[/B]
[B]<li><[/B][B][COLOR=#800000][COLOR=#800000]a[/COLOR][/COLOR][/B] href=[B]"#"><[/B][B][COLOR=#800000][COLOR=#800000]img[/COLOR][/COLOR][/B] src=[B]"images/gallery_thumbnail_3.gif"[/B] width=[B]"59"[/B] height=[B]"77"[/B] alt=[B]"Thumbnail 3 Caption"[/B] [B]/></[/B][B][COLOR=#800000][COLOR=#800000]a[/COLOR][/COLOR]></li><dd>[/B]Mutt[B]</dd>[/B]
[B]<li><[/B][B][COLOR=#800000][COLOR=#800000]a[/COLOR][/COLOR][/B] href=[B]"#"><[/B][B][COLOR=#800000][COLOR=#800000]img[/COLOR][/COLOR][/B] src=[B]"images/gallery_thumbnail_4.gif"[/B] width=[B]"137"[/B] height=[B]"77"[/B] alt=[B]"Thumbnail 4 Caption"[/B] [B]/></[/B][B][COLOR=#800000][COLOR=#800000]a[/COLOR][/COLOR]></li><dd>[/B]Flower Power[B]</dd>[/B]
[B]<li><[/B][B][COLOR=#800000][COLOR=#800000]a[/COLOR][/COLOR][/B] href=[B]"#"><[/B][B][COLOR=#800000][COLOR=#800000]img[/COLOR][/COLOR][/B] src=[B]"images/gallery_thumbnail_5.gif"[/B] width=[B]"119"[/B] height=[B]"78"[/B] alt=[B]"Thumbnail 5 Caption"[/B] [B]/></[/B][B][COLOR=#800000][COLOR=#800000]a[/COLOR][/COLOR]></li><dd>[/B]Check It Out[B]</dd>[/B]
[B]</ul>[/B]
[B]</dl>[/B]
[B]</div>[/B]

[I][COLOR=#ff0000][COLOR=#ff0000]<!-- End of Gallery -->[/COLOR][/COLOR][/I]


    Attached Files:

    ishkey, Feb 13, 2009
    #6
  7. chasm

    chasm New Member

    That works! Now to figure out *why* it works ;-)

    To make changes to the appearance/size of the thumbnail labels I'm assuming you could insert a
    dd {} in the css file and code from there, like:

    dd {
    text-decoration: underline;
    text-align: center;
    }

    I'll try that when I'm home a little later.

    Thanks again for your help

    chasm, Feb 14, 2009
    #7
  8. ishkey

    ishkey Moderator, Logos, Sports Crests Staff Member Verified Member

    Either edit the css file or add to the html file
    Code:
    [I][SIZE=1][COLOR=#ff0000][SIZE=1][COLOR=#ff0000]<!-- Start of Gallery -->[/COLOR][/SIZE][/COLOR][/SIZE][/I]

[SIZE=1][B]<div[/B] id=[B]"gallery">[/B][/SIZE]
[SIZE=1][B]<div[/B] style=[B]"[/B][/SIZE][B][SIZE=1][COLOR=#008000][SIZE=1][COLOR=#008000]text-align[/COLOR][/SIZE][/COLOR][/SIZE][SIZE=1]:[/SIZE][/B][SIZE=1] center[B]"><dl>[/B][/SIZE]
[SIZE=1][B]<ul>[/B] [/SIZE]
[SIZE=1][B]<li><[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]a[/COLOR][/SIZE][/COLOR][/SIZE][/B][SIZE=1] href=[B]"#"><[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]img[/COLOR][/SIZE][/COLOR][/SIZE][/B][SIZE=1] src=[B]"images/gallery_thumbnail_1.gif"[/B] width=[B]"84"[/B] height=[B]"76"[/B] alt=[B]"Thumbnail 1 Caption"[/B] [B]/></[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]a[/COLOR][/SIZE][/COLOR][/SIZE][SIZE=1]></li><dd>[/SIZE][/B][SIZE=1]Hot Lips[B]</dd>[/B][/SIZE]
[SIZE=1][B]<li><[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]a[/COLOR][/SIZE][/COLOR][/SIZE][/B][SIZE=1] href=[B]"#"><[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]img[/COLOR][/SIZE][/COLOR][/SIZE][/B][SIZE=1] src=[B]"images/gallery_thumbnail_2.gif"[/B] width=[B]"93"[/B] height=[B]"76"[/B] alt=[B]"Thumbnail 2 Caption"[/B] [B]/></[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]a[/COLOR][/SIZE][/COLOR][/SIZE][SIZE=1]></li><dd>[/SIZE][/B][SIZE=1]Wasp Love[B]</dd>[/B][/SIZE]
[SIZE=1][B]<li><[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]a[/COLOR][/SIZE][/COLOR][/SIZE][/B][SIZE=1] href=[B]"#"><[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]img[/COLOR][/SIZE][/COLOR][/SIZE][/B][SIZE=1] src=[B]"images/gallery_thumbnail_3.gif"[/B] width=[B]"59"[/B] height=[B]"77"[/B] alt=[B]"Thumbnail 3 Caption"[/B] [B]/></[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]a[/COLOR][/SIZE][/COLOR][/SIZE][SIZE=1]></li><dd>[/SIZE][/B][SIZE=1]Mutt[B]</dd>[/B][/SIZE]
[SIZE=1][B]<li><[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]a[/COLOR][/SIZE][/COLOR][/SIZE][/B][SIZE=1] href=[B]"#"><[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]img[/COLOR][/SIZE][/COLOR][/SIZE][/B][SIZE=1] src=[B]"images/gallery_thumbnail_4.gif"[/B] width=[B]"137"[/B] height=[B]"77"[/B] alt=[B]"Thumbnail 4 Caption"[/B] [B]/></[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]a[/COLOR][/SIZE][/COLOR][/SIZE][SIZE=1]></li><dd>[/SIZE][/B][SIZE=1]Flower Power[B]</dd>[/B][/SIZE]
[SIZE=1][B]<li><[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]a[/COLOR][/SIZE][/COLOR][/SIZE][/B][SIZE=1] href=[B]"#"><[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]img[/COLOR][/SIZE][/COLOR][/SIZE][/B][SIZE=1] src=[B]"images/gallery_thumbnail_5.gif"[/B] width=[B]"119"[/B] height=[B]"78"[/B] alt=[B]"Thumbnail 5 Caption"[/B] [B]/></[/B][/SIZE][B][SIZE=1][COLOR=#800000][SIZE=1][COLOR=#800000]a[/COLOR][/SIZE][/COLOR][/SIZE][SIZE=1]></li><dd>[/SIZE][/B][SIZE=1]Check It Out[B]</dd>[/B][/SIZE]
[SIZE=1][B]</ul>[/B][/SIZE]
[SIZE=1][B]</dl></div>[/B][/SIZE]
[SIZE=1][B]</div>[/B][/SIZE]

[I][SIZE=1][COLOR=#ff0000][SIZE=1][COLOR=#ff0000]<!-- End of Gallery -->[/COLOR][/SIZE][/COLOR][/SIZE][/I]

    ishkey, Feb 14, 2009
    #8
  9. ishkey

    ishkey Moderator, Logos, Sports Crests Staff Member Verified Member

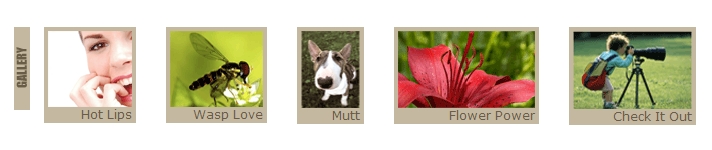

    Did it work? it looks like this! where is your web link so we can see?


    Attached Files:

    ishkey, Feb 14, 2009
    #9
  10. chasm

    chasm New Member

    Almost there

    I'll post up the template in just a bit.

    But one last problem

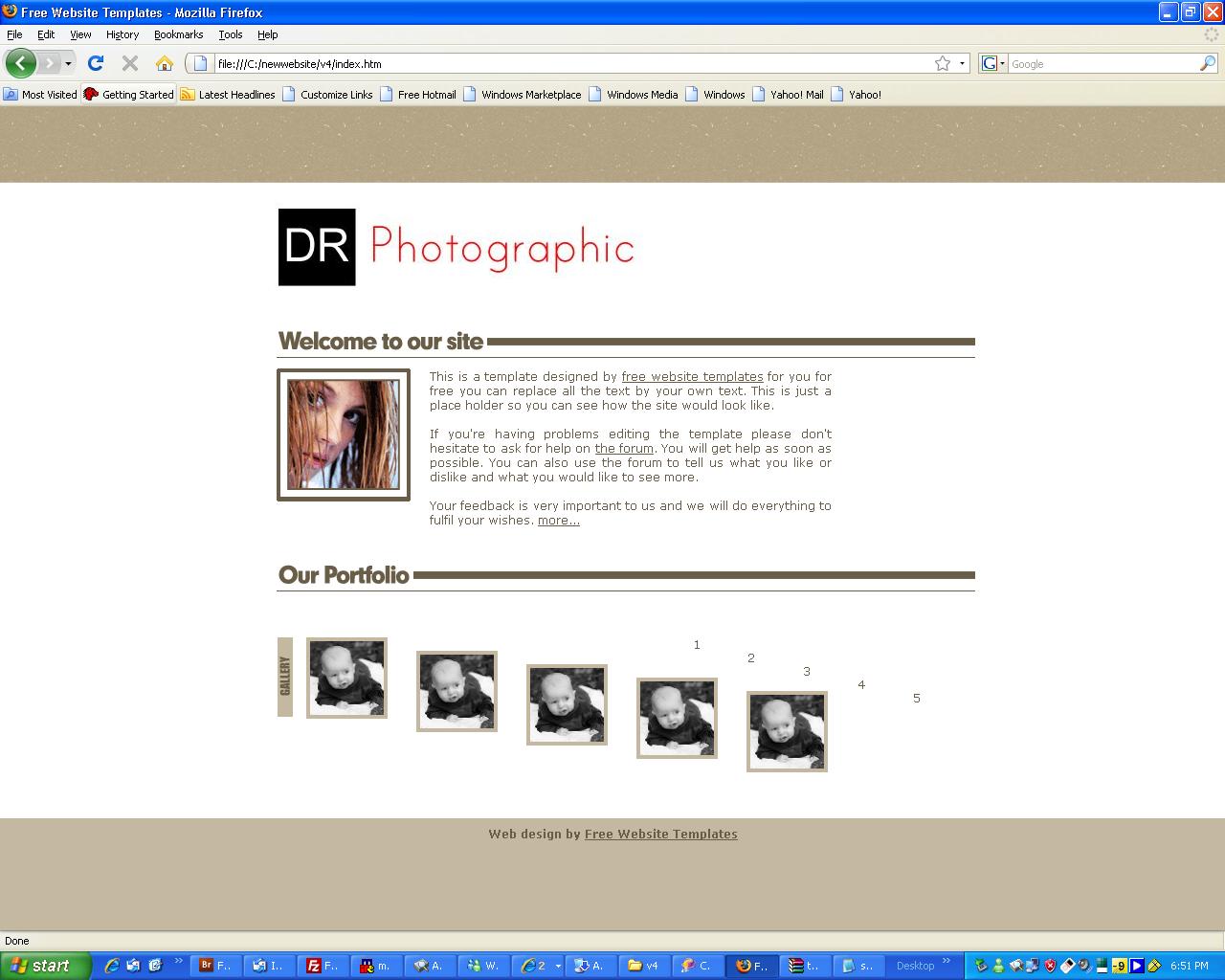

    The template mod works fine in IE, but falls apart in Firefox


    Do I not worry about it and post a big disclaimer on my page that warns users the page works in IE only? :)

    chasm, Feb 14, 2009
    #10
  11. Stomme poes

    Stomme poes New Member

    The HTML being invalid might be the cause (the ul's and dl's) but that staircasing effect happens a lot in IE with valid code. I can only tell you what happens with valid code-- usually someone has a normal, unordered list.

    They keep the ul as a block, leave the li's and float the anchors (and the anchors might either have a set height and width, or contain images). But IE has a problem with the not-mentioning li's. The usual fix is to add a display state for the li's. I can't seem to post HTML code correctly but if you can read this inline it's
    ul
    {whatever code you have;
    }
    li {
    display: inline;
    }
    then
    ul a {
    whatever you had, usually a float;
    }.

    It doesn't matter what the li's really are if the anchors are getting floated, IE just wants you to explicitly say a display state.

    Stomme poes, Mar 20, 2009
    #11
